FLF Flood Light 36-63W

Contact us

Price Contact us

SKU CPS-FLF-63/50/36W-XXK-YYYYY

Brand CPS

Weight N/A

Download DATASHEET (pdf)

Download IES File 36W 50K (IES)

Download IES FILE 50W 50K (IES)

Download IES FILE 63W 50K (IES)

Light Calculations

A file with the IES file extension is an IES Photometric file that stands for Illuminating Engineering Society. They are plain text files that contain data on light for architectural programs that can simulate light.
Light ID	Photometric File
XFLF(36_50_63)36W(30_40_50)50K_IESNA2002	XFLF(36_50_63)36W(30_40_50)50K_IESNA2002 IES Lighting Layout Calculation Light Calculations (XFLF(36_50_63)36W(30_40_50)50K_IESNA2002) © 2025 CPS LED, Inc.
XFLF(36_50_63)50W(30_40_50)50K_IESNA2002	XFLF(36_50_63)50W(30_40_50)50K_IESNA2002 IES Lighting Layout Calculation Light Calculations (XFLF(36_50_63)50W(30_40_50)50K_IESNA2002) © 2025 CPS LED, Inc.
XFLF(36_50_63)63W(30_40_50)50K_IESNA2002	XFLF(36_50_63)63W(30_40_50)50K_IESNA2002 IES Lighting Layout Calculation Light Calculations (XFLF(36_50_63)63W(30_40_50)50K_IESNA2002) © 2025 CPS LED, Inc.

Rebate Finder

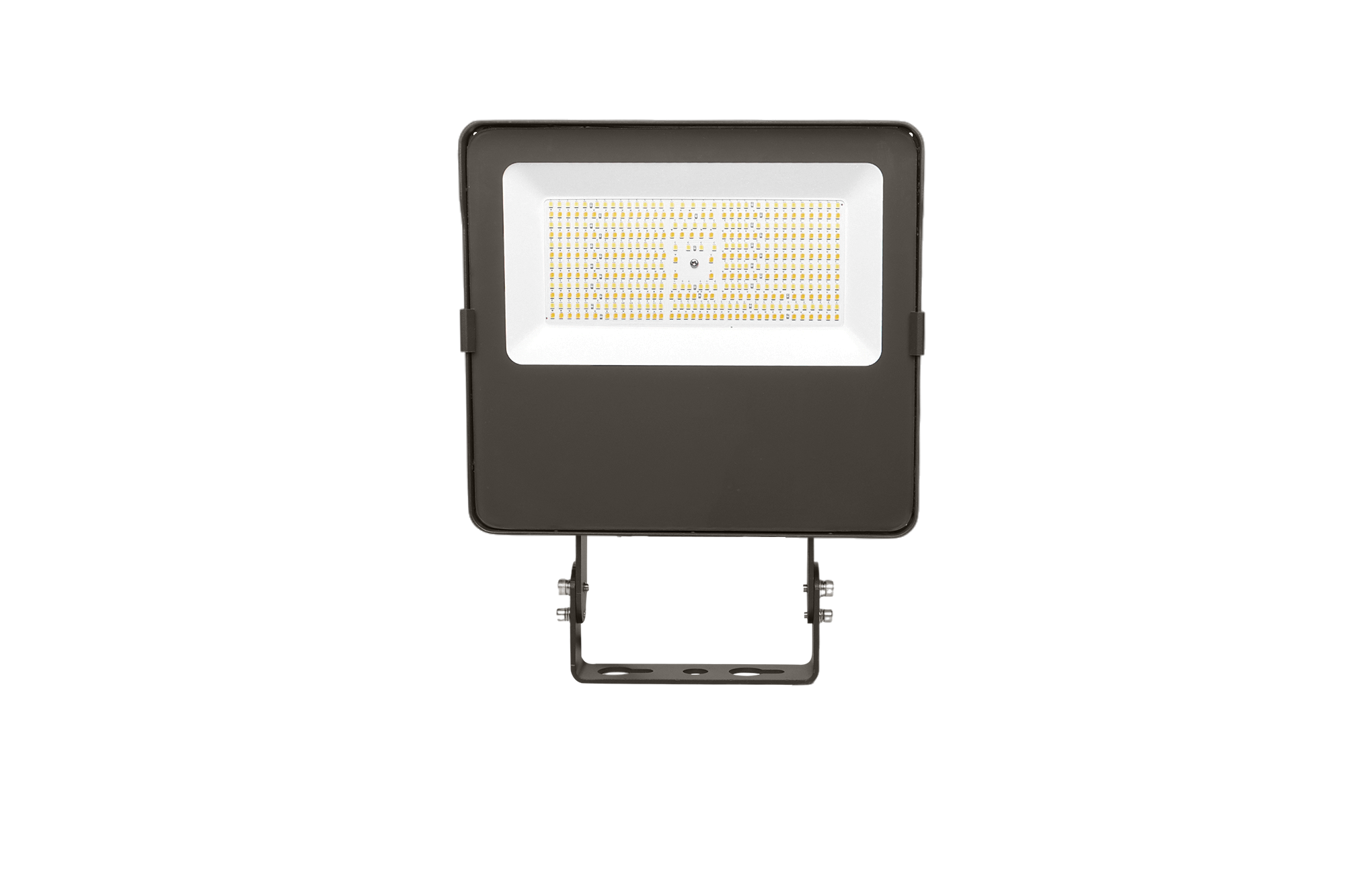

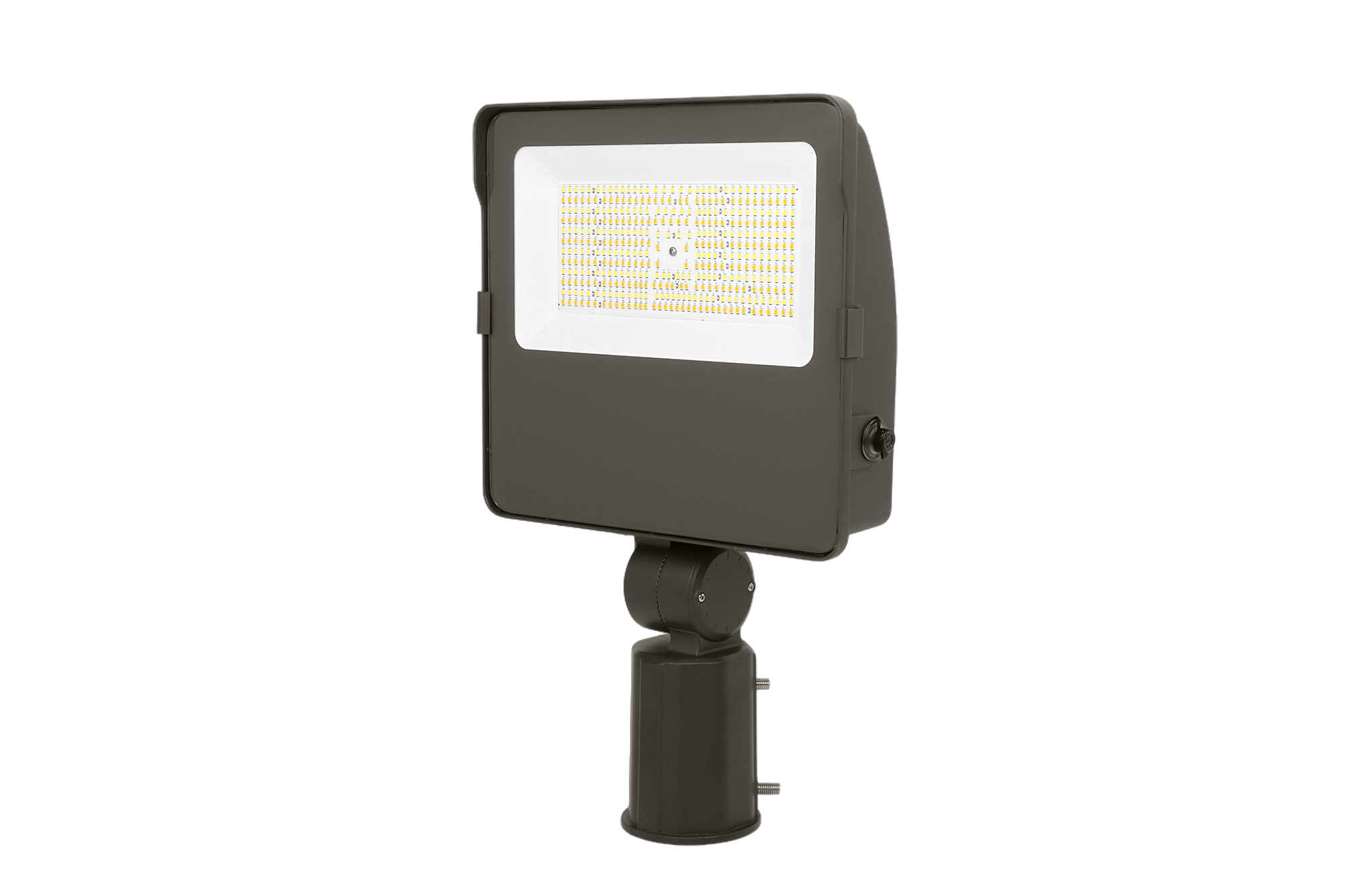

This FLF Series floodlight features a sleek, traditional low-profile design. Constructed from die-cast aluminum, it ensures durability and efficiency, capable of withstanding severe weather conditions. The tempered glass cover protects the LED chip and diffuses light effectively. With adjustable field lumen and CCT switches, the FLF offers a versatile and customizable lighting solution.

It includes three mounting options: Knuckle mount, Trunnion mount, and Slipfitter mount, each adjustable to accommodate various angles and directions of light. Designed to endure strong winds and environmental elements, the FLF Series is ideal for outdoor floodlight applications such as signage, facades, and car parks.

Key features include die-cast aluminum housing with a durable powder coating, fully sealed tempered glass, and an integrated photocell with an on/off switch. The electrical setup includes a 0-10V dimmable driver and a 24-inch power cord for easy installation. Optional features include selectable CCT (3000K, 4000K, or 5000K) and multiple distribution options (NEMA 7H7V, NEMA 4H4V, and NEMA 6H6V).
